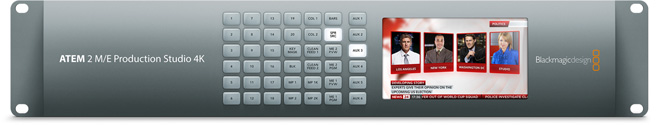

ATEM 2 M/E Production Studio 4K



    Supports NTSC/PAL/HD/UltraHD 4K @ 10-bit
    Supports 4K Resolution Over SDI or HDMI
    20 x 6G-SDI & 1 x HDMI Inputs
    Tri-Sync/Blackburst Ref. Sync Input
    10 x Built-In Frame Synchronizers
    Two Independent Multi-View Outputs
    Program Outputs in SD/HD/4K HD
    4 Upstream & 2 Downstream Keyers
    22-Input Audio Mixer
    Hardware or Software Mac/PC Control

https://www.blackmagicdesign.com/products/atem/techspecs/W-APS-06

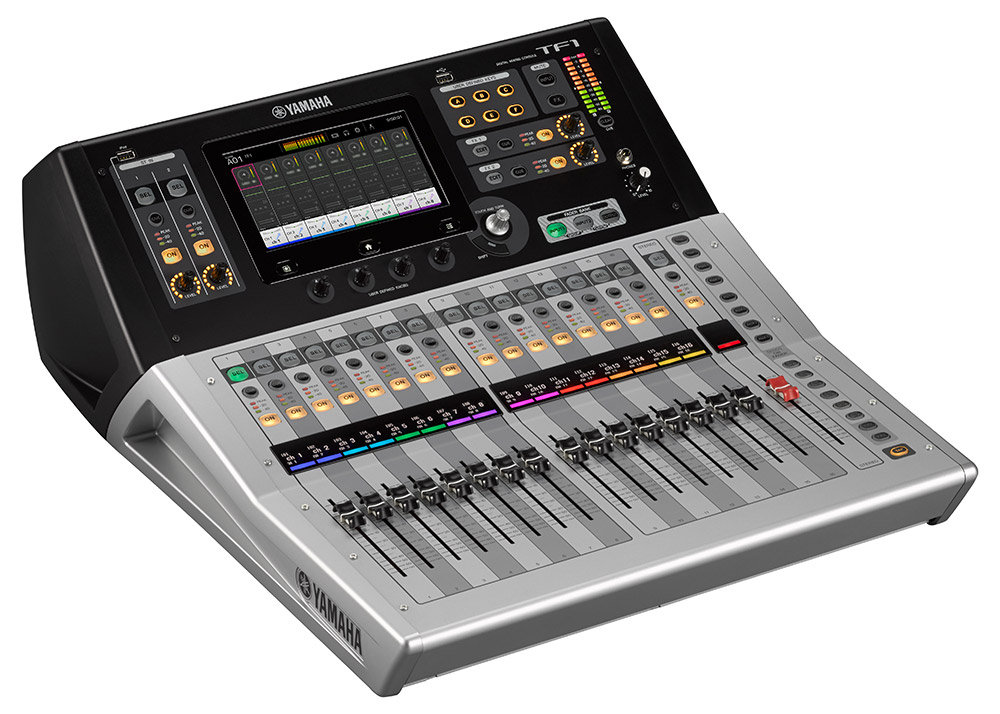

Yamaha TF-1


    17 motor faders (16 channels + 1 master)
    40 input mixing channels (32 mono + 2 stereo + 2 return)
    20 Aux buses (8 mono + 6 stereo) + Stereo + Sub
    8 DCA groups with Roll-out
    16 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
    16 analog XLR outputs
    34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
    8 Effects and 10 GEQ
    1 expansion slot for NY64-D audio interface card

https://usa.yamaha.com/products/proaudio/mixers/tf/index.html

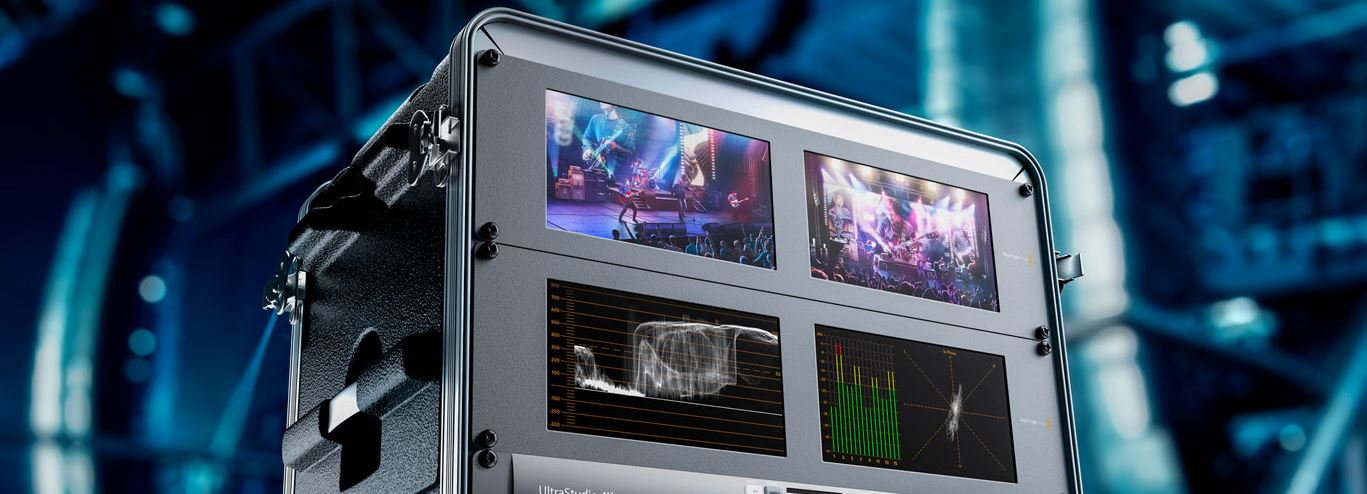

Blackmagic SmartView Duo

DI Video Input
Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output.
SDI Video Output
1 x 10 bit loop through SD, HD and 6G-SDI switchable.
SDI Audio Input

16 channels embedded in SD, HD and UHD.
SDI Audio Output

16 channels embedded in SD, HD and UHD.
Multi Rate Support

Standard definition SDI, high definition SDI and 6G-SDI.
Tally

9-pin D connector

https://www.blackmagicdesign.com/products/smartview


Total Video Inputs - 8
Total Outputs - 4
Total Aux Outputs - 2
Total Audio Inputs - 2 x 3.5mm stereo mini jack.
Total Audio Outputs - 1 x 3.5mm stereo mini jack.

HDMI Video Inputs

8 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync

On all 8 HDMI inputs.
Frame Rate and Format Converters

On all 8 HDMI inputs.
HDMI Program Outputs  - 2
Ethernet

Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer Interface

2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

https://www.blackmagicdesign.com/products/atemmini
